Chicago

Assistant Technical Director

Fritsche Theatre

Otterbein University

Direction by Melissa Lusher

Scenic Design by Rob Johnson

Lighting Design by T.J. Gerckens

Costume Design by Thomas Martin

Technical Direction by Patrick Stone

Photos by Mark Mineart

Production Photos

Design/Rendering by Rob Johnson

Finished Set

Process Photos

(click on a photo to enlarge)

Rob Johnson’s design for Cell Block Tango for our production of Chicago

Plate for the 6 Jail Cell Units.

Cut steel for Jail Cell Units

Steel placed in a jig to ensure all 6 were uniform and perfectly square.

Jail Cells after being welded and ground down before assembly.

Bases for the units.

Rotacasters were added to each unit so they could move freely and easily in any direction.

Assembled Jail Cell

Jail Cell unit after trim detail and paint were added.

The detail on top of jail cell units.

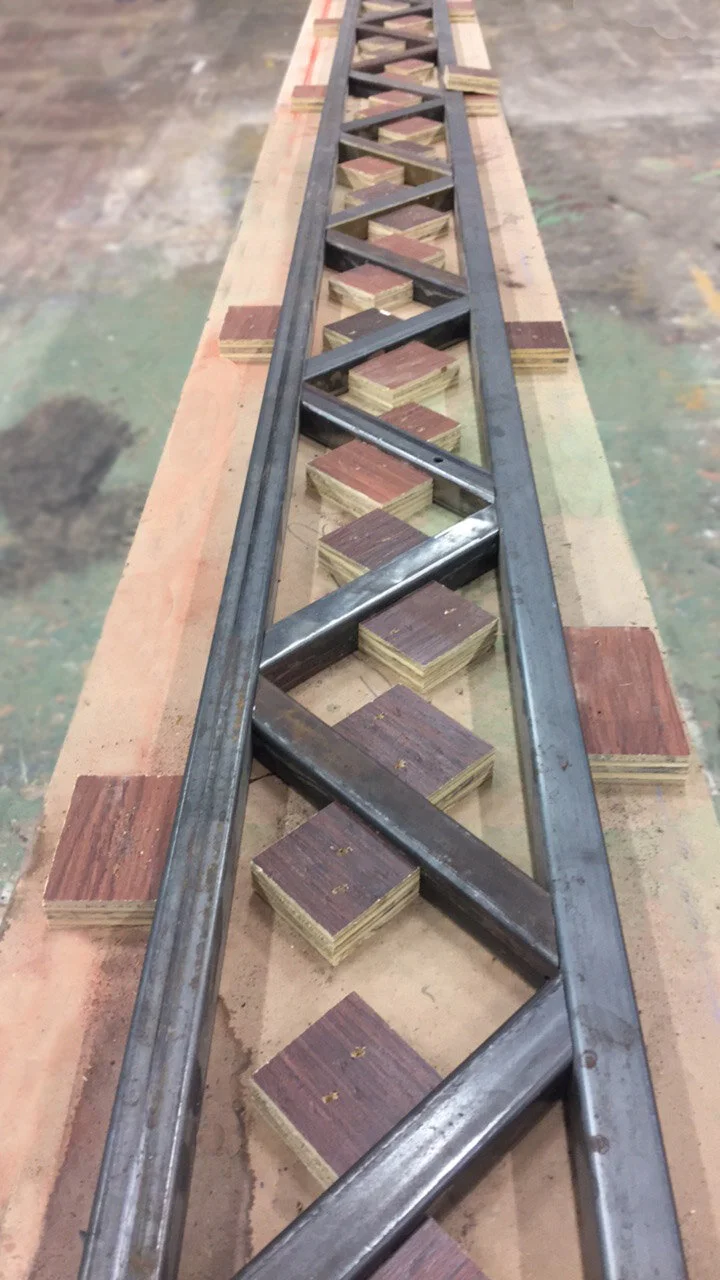

Custom truss was welded together for the main platform unit in the show.

Three of many trusses welded together for the platform.

The arches on the unit were made from cold bending 2” steel tubing and welded in place.

Framing made from the trusses and leged to height. Platforms started to get added on.

Platforms being added on to the frame for the unit.

The proscenium was made from several layers of lauan, plywood, and foam.

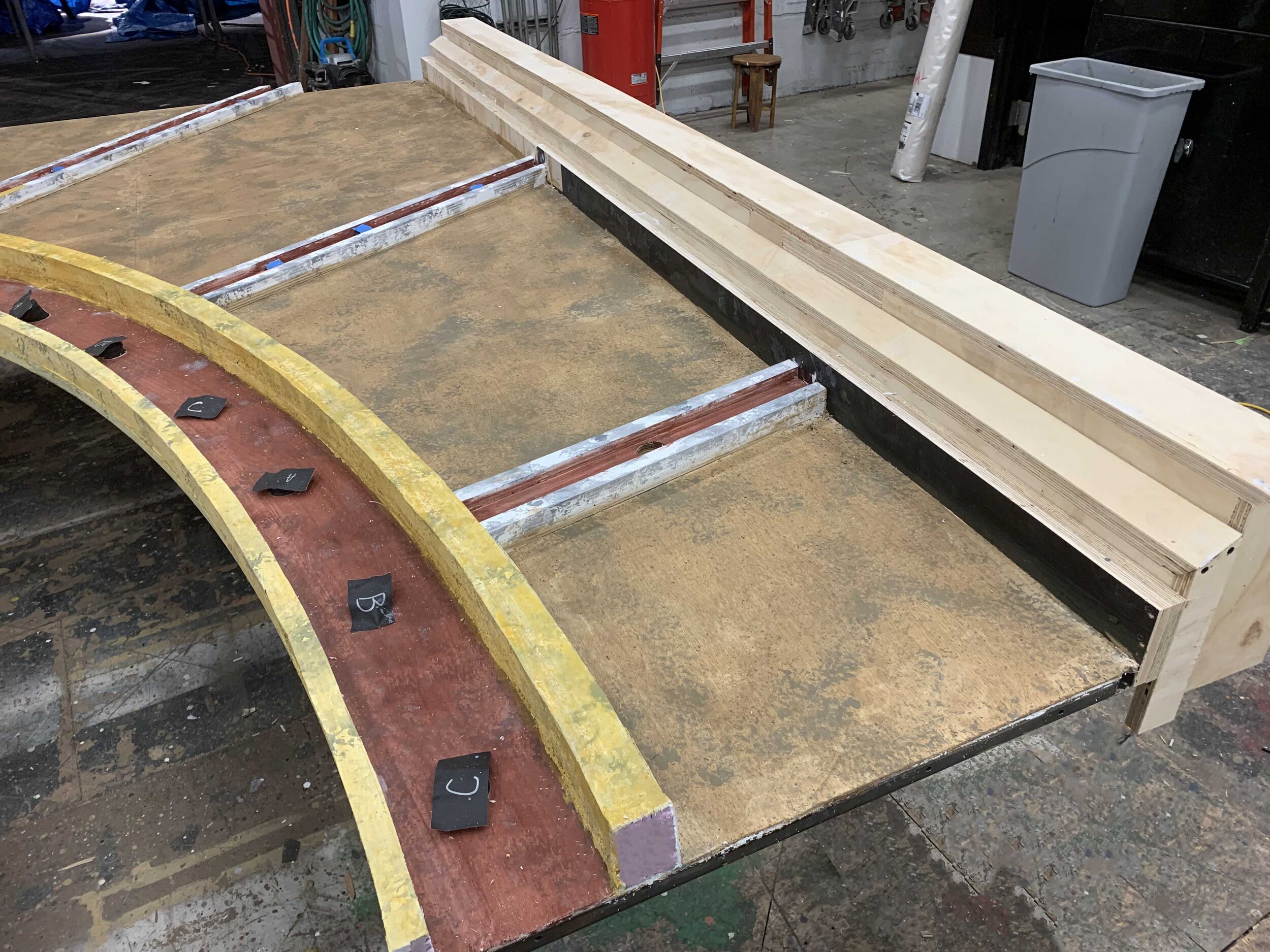

The molding for the top of the arch was made of different layers of plywood.

Another view of the molding at the top of the proscenium.

Half of the false proscenium with some of the detail added. It was prepped for Lighting to wire the lights once installed.

False proscenium arch after installed.

The applique on the set was made in multiple layers to give it more depth and texture.

Final detail and trim added to each side of the proscenium arch.

Detail and trim on the bottom legs of the false proscenium.

“Rosettes” were added to the set as the final decorative element. Made from many layers of applique.

The first layer of the “Rosettes”.

The second layer of the “Rosettes”.

Completed “Rosettes” with all 3 layers.
